AMP2 M

SEMI-AUTOMATIC MACHINE
AMP2 M

  • SECTOR Health
  • LOCATION Dobroyd Parade
  • VALUE $6.5 million
DOWNLOAD PROJECT PDF

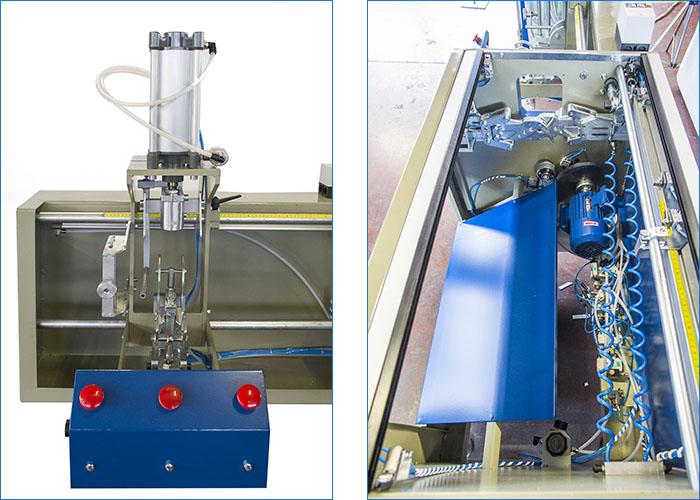

Semi-automatic machine AMP2M for assembly and cutting of mops made of both and synthetic material, completely pneumatic cycle.

Technical features:

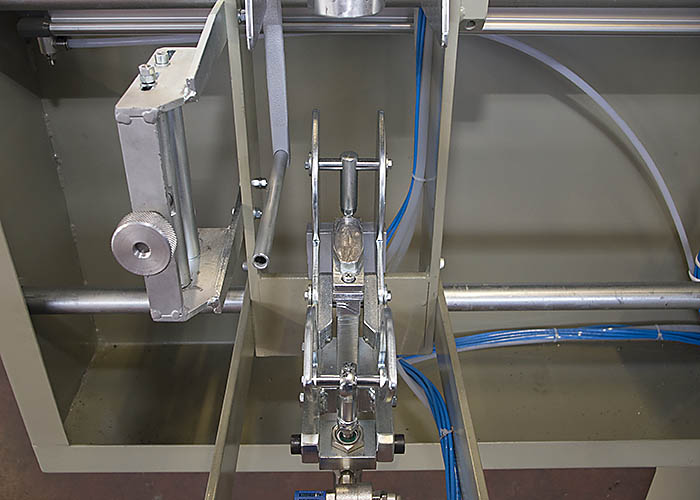

– assembly group with pneumatic cylinders
– towing group and measure with pneumatic movement
– cutting group with a steel disk HSS d.250 motorized


Characteristics:

– max mop length 800 mm , min mop length 380 mm
– consumption of air 5 bar,520 NLI/minute
– The machine is supplied with one stamp with possibility to change when required
– production capacity for traditional mops 750 per hour
– power consumption Kw 0,34


Overall dimension:

– Length 2000 mm width 700 mm height 1500 mm weight Kg. 350

loading
