Semi-automatic type AMT04B with light curtain for assembly mop cut in cotton and synthetic material.
Cycle Start -Stop, the operator loads only the plastic parts without pressing buttons.

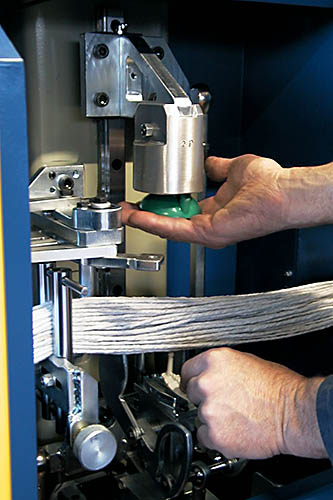

– assembly group whit mechanic movement by moto-reduction gear
– towing group and measure whit moto-reduction gear and electronic command function
– cutting group whit a steel disk HSS d:250
– max: mop length 900 mm – min: mop length 300mm
– power consumption Kw. 2.00
– the machine will be supply of just one stamp, possibility to change if required
– Production capacity for traditional mops 1250 per hour
– Length 2600mm.
– Width 1020mm
– Height 1500mm.
– Weight Kg. 700
